Weighted Check Valves Leave Water with ‘One Way Out’

These previous coal boilers have been linked to the large pipes that circulated by gravity. When the contractor promised the home-owner that the newfangled thermostat on the wall would hold the home at one temperature, there needed to be one thing to forestall all the warmth within the excessive mass forged iron boiler from circulating by gravity out of the boiler after the thermostat ended the decision for warmth. The pump would cease, the verify would fall into place, and circulation to the radiators would cease. This was superior stuff again then.

Occasions modified and the perform of the weighted verify valve advanced to forestall backwards circulation within the newfangled a number of zoned scorching water methods utilizing zone pumps. With out the verify valves, when one zone pump begins circulating, water may also move backwards by zones which might be off. This doesn’t occur with zone valve methods, due to the optimistic closure of the zone valves.

Misapplication

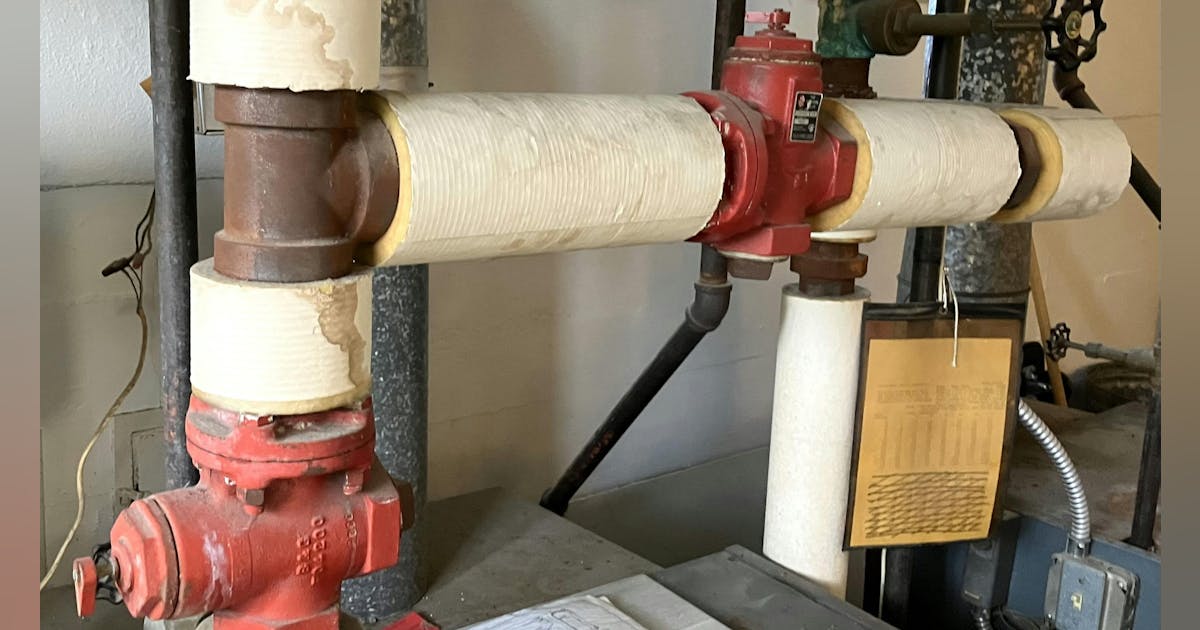

The appliance of the valves proven within the picture is totally fallacious. I hate to be so judgmental, however this man fully misunderstood what they do. This can be a two equal measurement boiler system, offering warmth to an residence constructing. The boilers are staged on and off to enhance system effectivity. I neglect what I used to be there for, however these valves caught my eye.

The valve on the left is linked to the provision tapping of the boiler, so water can solely go up by the valve. The valve on the appropriate is linked to a tee within the return line of the boiler. As oriented, the water can solely move from proper to left by the valve, or from the return to the tee above the opposite valve, which is the provision.

Their flows mix to be the entire move by that facet of the pair of boilers, and on this case half the entire move of the system. How a lot move goes by every valve can’t be managed, solely which route the move shall be. The valves are located to make me imagine that the putting in contractor thought they may management move. Actually, if we had the piping diagram that the contractor was utilizing to run the piping, there could be valves in these places marked “move management or balancing valves”.

Full disclosure, for a few years I offered this precise model of valves. The producer gave them the commerce identify, “Flo-Management” valves. Sure, they did management move, however solely its route. A couple of instances in my profession I did catch contractors attempting to purchase these valves to regulate the quantity of move. I assume I didn’t get an opportunity to speak to this man.

Working Principle

The explanation he piped on this bypass between the provision and return is unknown, however I think it will have been to forestall flue gasoline condensation. The speculation for that is mixing the recent water from the boiler with the cooler return water from the system to maintain the temperature up within the forged iron or copper fin warmth exchanger of on/off boilers.

If it’s a excessive effectivity condensing boiler, than we don’t need to do that as a result of the cooler the return water, the upper the effectivity. On this case, the verify valve would stop the water from going that means. With the way in which that is arrange, the cooler water from the return mixes with the recent water from the boiler, decreasing the temperature of the water going to the radiation. Undecided why you need to warmth the water up after which cool it down.

Simply Don’t Know

One other characteristic of this valve is the flexibility to manually carry the weighted verify valve off the set. This was essential again within the day when electrical energy and pumps weren’t so dependable. In case you didn’t have a pump to carry the verify, you may flip that little knob on the highest and it will pull up the verify and maintain it open so gravity move might occur.

In case you discover within the picture, the left valve is manually open and the appropriate valve is working mechanically. Quite a lot of the instances within the area, I discover the valve within the guide place. I assume lots of people misunderstand the perform and operation of the weighted verify valve. Because the music says on the finish, “Oh child, I simply don’t know.”
