The Painstaking Battle to Build Miami’s New Signature Bridge Arches

In early August, the Florida Dept. of Transportation quietly prolonged—for the second time in two years—the anticipated completion date for the now $866-million Miami Signature Bridge challenge to 2029. The schedule is now 5 years previous the unique 2024 goal that the Archer Western-de Moya Joint Enterprise was aiming for in 2019, when it began development on the one-of-a-kind, six-arch bridge and surrounding interstate freeway reconstruction challenge.

The challenge crew has discovered that erecting the construction is a singular development problem. Not like extra normal precast segmental bridges, the overwhelming majority of the arches’ 345 precast segments are so totally different from one another that it was subsequent to not possible for precaster Rizzani de Eccher to standardize their development.

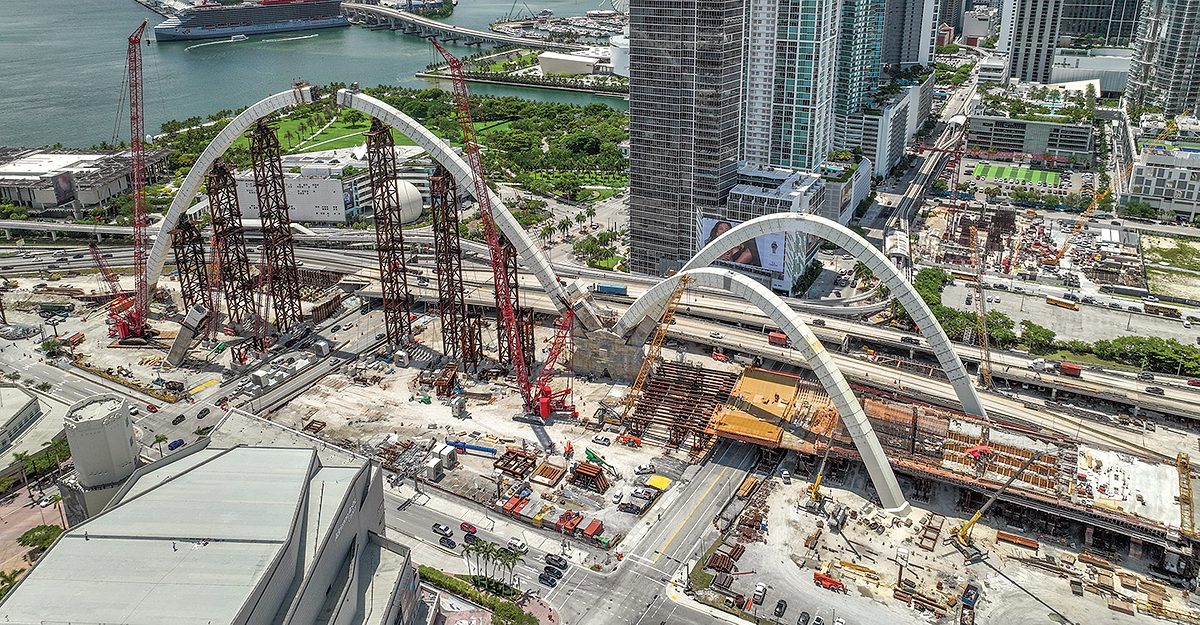

A view of Arch 5 as Archer Western-de Moya Joint Enterprise nears ultimate erection in August.
Picture courtesy Florida Dept. of Transportation

“That is probably the most advanced design-build segmental bridge, actually, on this planet,” says Riccardo Castracani, enterprise improvement director with the agency. “We’ve by no means encountered one thing of this magnitude,” he provides, referencing his agency’s international expertise. “As advanced because it seems to be from afar, you’ll be able to multiply that by ten” when scrutinized carefully.

For the general challenge, and particularly the Signature Bridge, Oscar Gonzalez, senior group outreach specialist for FDOT, notes that the crew makes in depth efforts to maintain the group apprised of the challenge’s progress on present and future actions by way of its challenge web site and weekly emails to roughly 4,000 subscribers, says Gonzales.

Month-to-month stakeholder conferences, open to the general public, appeal to representatives of native venues—such because the close by performing arts middle—and elected officers, he provides.

With three of the bridge’s six arches now erected within the coronary heart of Miami, the advanced design stays within the highlight for the builders.

Architect Donald MacDonald drew inspiration from the Magic Fountain of Montjuïc in Barcelona, Spain
Picture courtesy Getty Photographs

Some further supplies portions assist illustrate the bridge’s broader scope: 288,646 cu yd of cast-in-place concrete; 95.1 million lb of rebar; 10.9 million lb of post-tensioning; 1,187 sq. piles; greater than 583,000 cu yd of earthwork; and 136 keep cables.

Constructing Extra Than a Bridge

Along with the bridge, the Archer Western-de Moya Group three way partnership can also be reconstructing parts of Interstate 395 (left), and segments of Interstate 95 (proper).
Photographs courtesy Florida Dept. of Transportation

Along with the bridge, the general I-395/SR 836/I-95 Design-Construct challenge will reconstruct 1.4 miles of I-395, from the SR 836/I-95/I-395 Midtown Interchange to the MacArthur Causeway, increasing capability on I-395 by way of three by means of lanes in every path and offering separate connector ramps for site visitors to and from I-95.

The challenge will even modernize the SR 836 hall from NW 17 Avenue to the Midtown Interchange by double-decking SR 836, offering a direct connection to the MacArthur Causeway. This construction will start east of NW 17 Avenue, rising above and alongside the middle of SR 836, then ending at I-395, east of the I-95 interchange, in keeping with FDOT.

The direct connection to the MacArthur Causeway shall be freed from native entry and exit site visitors, with the present SR 836 roadway and bridges serving as a collector-distributor system enabling drivers to enter and exit from the native roads and I-95. In accordance with FDOT, this method will cut back current weaving actions, enhancing security.

On the close by I 95, from NW 8 Road to NW 29 Road, crews are changing concrete pavement for the north- and southbound journey lanes, and including an auxiliary lane alongside northbound I-95 from north of NW 17 Road to NW 29 Road to deal with further site visitors from the eastbound SR 836 ramp to northbound I-95.

Moreover, the Metropolis of Miami has plans to construct a mile-long I-395 Underdeck and Heritage Path, a public panorama “that weaves under the elevated I-395 roadway, making a 33-acre city open house and streetscapes that can reunite the city material of Overtown, a traditionally Black neighborhood that was disconnected throughout freeway development within the Sixties,” in keeping with town.

The Metropolis of Miami had secured a $60-million U.S. Dept. of Transportation grant for the estimated $82.7-million challenge, however the Trump administration in August rescinded that funding.

Whereas calling the loss a major setback, Miami metropolis officers instructed media that town stays dedicated to constructing the challenge.

Designing, Engineering ‘The Fountain’

The six-arch bridge construction, named The Fountain, will span 1,025 ft, with the tallest arch, Arch 5, rising up 325 ft, with a width of 650 ft. The roadway shall be supported by twin cast-in-place field girders suspended from every arch.

HDR, the engineer of report for the bridge and the I-395 work, describes the bridge challenge on its web site as showcasing “the essence of Miami as the middle for the humanities, with this construction as its nexus,” including that it “is impressed by Miami’s world standing as the middle of the Americas, and the fountain-like arches are symbolic of Miami as a spot the place individuals from all backgrounds come collectively and dwell as a group.”



Visualization illustrates the positioning of all six arches and the west- and eastbound superstructures; rendering exhibits structure of segmental bridges and typical roadway segments.
Bridge Rendering courtesy HDR; Backside Picture courtesy FDOT

The exact imaginative and prescient for the centerpiece arches got here from the titular principal of San Francisco-based Donald MacDonald Architects LLC, who instructed ENR he considered the project as “a beautiful alternative to do one thing … that wanted to be accomplished.”

MacDonald—who credit HDR for the 2 events’ “shut working relationship” throughout the design part—says he drew specific inspiration from two disparate components: the emblem of the previous Miami-based Pan American Airways, and the Magic Fountain of Montjuïc in Barcelona, Spain.

“I used to fly Pan Am so much, they usually had logos that had these arches popping out from South America and North America and ending up in Miami,” he says. “That began me considering. After which I wished to get one thing that was the middle for a metropolis, and I discovered that Magic Fountain in Barcelona [had] these big fountains in the midst of town.”

When accomplished, LED lights “will go up the arches and are available down the cabling,” MacDonald says, including that there could also be “4 or 5 ranges of interpretation” of the inventive bridge’s design.

“There’s alternative ways to take a look at this,” he says.

An early view of the 325-ft-tall Arch 5’s development exhibits the construction’s dimension and the angle of its precast segments
Picture courtesy FDOT

Archer Western-de Moya readies a precast phase for placement.
Picture courtesy FDOT

The rising construction rests upon a middle pier footing comprised of roughly 5,000 cu yd of concrete and 1.7 million lb of metal reinforcing that carries the burden of the arches and suspended deck, and homes the bridge’s electrical and structural well being monitoring system, in keeping with HDR.

The superstructure field girders are being constructed concurrently with the arch development as cast-in-place buildings supported on falsework. As soon as the arches are accomplished, cable suspenders consisting of 19 to 55 high-strength metal strands per cable shall be put in, transferring the superstructure weight to the arches.

Mike Lamont, main bridges technical director with HDR, says designing the arches proved uniquely difficult. First, there was little to no alternative to tweak the bridge’s aesthetic particulars as soon as the Metropolis of Miami’s design committee accredited the challenge.

“The type of the construction is to fulfill an aesthetic imaginative and prescient, which is what the group wished,” Lamont says. “It’s our job to make it work structurally.”

Typical arch bridges are uniformly loaded and “principally working in compression,” Lamont says.“There’s no symmetry in [this] construction. Cables are pulling on the arches from totally different angles, which leads to numerous bending within the arches, which is an unconventional loading situation for an arch.

“We wanted numerous post-tensioning within the arches to maintain the phase joints in compression—and due to the shortage of symmetry, that post-tensioning was not at all times a symmetric structure,” he provides.

A view of the ends of post-tensioning tendons on the roof of a middle pier’s leg.
Picture by Scott Judy

A precast phase able to be erected.
Picture by Scott Judy

Crews at work constructing the Arch 3 footer.
Picture courtesy FDOT

For instance, “Relying on the place you might be within the arch, and which method the cables are pulling, you’ll have post-tensioning on one facet and never the opposite. So we had a really intricate structure of post-tensioning by means of every of the arches primarily based on their particular loading circumstances,” Lamont explains.

“This was a beautiful alternative … to do one thing that
wanted to be accomplished”
—Donald MacDonald, Principal in Cost/Principal Design, Donald MacDonald Architects

Because of this, some precast segments function inside anchorages “on only one nook and never all 4, or on one facet and never the opposite,” he provides. “It’s not simply the ultimate situation we’re designing for; it’s all of those intermediate development levels.”

One other issue the engineers needed to contemplate was FDOT’s requirement that the bridge stand up to winds of as much as 140 mph all through development.

Calling the 140-mph normal “a really restrictive requirement” that additionally “is smart,” Lamont says that “at every stage of development, we’ve got to be sure that we are able to stand up to that wind loading, plus all the hundreds that end result from constructing the construction.”

Carrying the burden of the arches and suspended deck is a middle pier footing comprised of roughly 5,000 cu yd of concrete and 1.7 million lb of metal reinforcing.
Picture courtesy Florida Dept. of Transportation

For precaster Rizzani de Eccher, the signature bridge’s design made it subsequent to not possible to standardize precast phase fabrication to any notable diploma.

Usually, “we obtain quick cycles, and we obtain excessive effectivity in precasting,” says Paolo Longobardi, vp of operations. However The Fountain is “a really totally different animal. These six arches are all totally different by design, by geometry [and] the loadings on these arches are very asymmetrical. We have now arches the place you see numerous post-tensioning on one facet and fewer on the opposite facet.”

Arch 5, the tallest of the bridge’s six arches, rises 325 ft excessive, and extends 650 ft.
Picture courtesy Florida Dept. of Transportation

The time it took to solid segments was “for much longer than typical,” Longobardi provides, noting that the corporate accomplished “only a few segments” on the extra normal two-day cycles. Some segments “had been taking 4 days, as much as per week.”

“The type of the construction is to fulfill an aesthetic imaginative and prescient.
It’s our job to make it work structurally.”

—Mike Lamont, Main Bridges Technical Director, HDR

Although there have been change orders associated to the precast segmental development and erection, Mark Croft, CEI resident engineer with the Corradino Group, says most objects had been accredited comparatively shortly.

Lenny Gardino, senior challenge supervisor at Archer Western father or mother, the Walsh Group, overseeing phase erection, says that erecting the precast segments—as was the case with Rizzani de Eccher—proved to be tougher than anticipated.

“It wasn’t simply the congestion of the rebar; it was additionally the congestion of the post-tensioning working by means of these arches,” he says, calling the store drawings “a job in themselves.” There have been no typical segments that could possibly be almost duplicated with minor modifications.

“We just about had a rendering of each single phase, and every stick of rebar was designed to be a sure angle, a sure size, to tackle all of the post-tensioning,” Gardino says. “Every little thing that (Rizzani de Eccher) fought on the bottom, we’re now preventing as we erect.”

“That is probably the most advanced design-build segmental bridge, actually, on this planet.”

—Riccardo Castracani, Enterprise Growth Director with Rizzani de Eccher

Additionally, regardless of the appreciable efforts made by the crew to make sure that every phase is designed and constructed to perfection, generally erection doesn’t proceed as anticipated, says Gardino. “So a few of these [falsework] towers have extra load on them than we’ve anticipated, and different towers have much less.

“The mannequin says it’s going to do one factor, and generally [the arch] is stiffer,” he continues. “Typically you’re loading the towers greater than anticipated. Not solely do you’ve the impacts of geometry, however then you’ve the impacts of the loading on the falsework towers as properly.”

The Fountain Bridge is designed to be an icon for town of Miami.
Rendering courtesy Florida Dept. of Transportation

An instance of this situation occurred with the precast phase erection for Arch 5.

“We erected [Arch] 5 to the place we thought we had been in nice form, however the loading on the towers was not the place we thought it was going to be,” Gardino says. “So now one thing that we thought we’d be out and in of in a month would possibly take us two months, as a result of the arches simply weren’t appearing like we thought they had been going to.”

Waiting for completion of The Fountain Bridge, architect MacDonald sees a shiny future. “It’s so distinctive, there’s nothing prefer it on this planet,” he says. “So it’s actually going to be a dynamite factor.”
