Combatting Disease and Delays to Build the Panama Canal

First got here the French. A syndicate led by Ferdinand de Lesseps, the diplomat who had led development of the Suez Canal, started excavating a channel by way of Central America in 1881.

Drawing enormous contingents of Afro-Caribbean laborers, the workforce peaked at 40,000 in 1888. With almost 10 ft of annual rainfall within the area, frequent mudslides induced fixed setbacks. Malaria and yellow fever killed an estimated 22,000; waste and corruption by many contractors and suppliers hobbled the hassle; and chapter in 1889 resulted in 800,000 largely center class French traders dropping their holdings.

Within the Eighteen Nineties, U.S. enterprise figures and officers grew to become fascinated about growing an Atlantic-Pacific canal, with most favoring a Nicaraguan route. After a lot wrangling, Congress settled on a route in 1902 by way of what would change into the nation of Panama, and agreed to pay $40 million to buy the French belongings: the canal zone concession; the working Panama Railway, important to the development work; and greater than 2,000 buildings plus the development equipment.

President Theodore Roosevelt took workplace in 1901 and galvanized the canal effort. He selected Col. William Gorgas, the main tropical illness physician within the U.S., to supervise the hospitals and sanitary work. However venture leaders dismissed Gorgas’ insistence that inflexible sanitary measures needed to be carried out earlier than development ramped up. Gorgas nonetheless proceeded in 1904 to wage struggle on mosquitos, having just lately been recognized as transmitters of yellow fever. He educated inspectors to go to each home within the close by metropolis of Colon to make sure each properly, cistern and water jar was lined, and that any pockets of standing water outside have been coated with oil or kerosene.

The U.S. effort to construct the Panama Canal benefitted from earlier deserted efforts by the French and a concerted try by venture leaders to eradicate yellow fever within the canal. Figures from ENR archive

As ENR’s editorial endorsement dryly said, “The perfect that ability and cash can do to enhance the sanitary situations and reduce the chance of epidemics shall be properly expended, not alone from the humanitarian viewpoint, however due to an final discount within the complete value of development.”

Regardless of his efforts, venture leaders didn’t take Gorgas critically, and a 1905 yellow fever outbreak within the canal administration constructing spurred three-quarters of the People to go dwelling. A single stevedore died of bubonic plague, leading to lots of of rat traps being set, poison put out, and barracks and ships fumigated.

Chief Engineer John Wallace had let work on the canal progress slowly with the inherited French tools. Laborers usually didn’t have the correct instruments—railroad spikes have been being pushed with axes. Secretary of Warfare William Howard Taft, who was in command of the general canal effort, summoned Wallace and fired him. A yr in, the U.S. canal effort was a disorganized mess.

Wallace’s successor in 1905, John Stevens, was a hardened railroad engineer. He stopped work within the canal’s Culebra Minimize for an entire reorganization. To alleviate a housing scarcity, he had entire communities constructed—homes, barracks, mess halls, hospitals, faculties and sewage techniques. Stevens additionally gave Gorgas carte blanche to struggle illness. Quickly Gorgas had 4,000 males engaged on yellow fever eradication efforts: putting in screening, spraying insecticide and making use of antiseptics equivalent to carbolic acid. Inside 18 months that they had introduced it below management, allaying the fears of illness that had made it tough to recruit U.S. employees.

Picture from Wikimedia commons by H.C. White Co., supply: The USA Library of Congress’s Prints and Pictures Division, initially posted by Jahoe and accessible within the public area by way of license CC Public Area Mark 1.0

Stevens noticed the Panama Railroad because the linchpin. Along with shuttling employees, meals and provides, it needed to transport huge portions of spoil from the Culebra Minimize, a 300-ft-high ridge set to be carved right into a nine-mile-long canyon. He changed the outdated French rails with heavier tracks and ordered a fleet of huge locomotives, dump automobiles and 95-ton Bucyrus steam shovels.

Staff from the U.S. have been recruited for administrative and clerical work and for the expert trades. To cut back turnover, married males have been inspired to carry their wives and youngsters and given homes with fashionable plumbing at no cost. A neighborhood took form, with commissaries supplying American meals whereas church buildings and faculties have been arrange. Quickly there have been 6,000 People, together with 2,500 ladies and youngsters.

The overwhelming majority of the workforce led a harsher existence. The most important contingent of pick-and-shovel employees was 20,000 males from Barbados. Martinique and Guadeloupe provided 7,500 laborers and Stevens recruited 8,000 Basques. Laborers dug ditches, lower brush, carried lumber, unloaded packing containers of dynamite, and loaded cement. By late 1906 that workforce had reached 24,000.

Initially laborers have been assigned tents and fed in mess halls the place they discovered the meals substandard. Mess halls, housing and hospitals have been all segregated. Most ended up leaving the camps and renting rooms within the slums of Colon or Panama Metropolis. Many constructed their very own shacks within the bush. Black laborers, enduring inferior residing situations and extra harmful assignments, had a dying price 4 instances that of whites. Though yellow fever had been vanquished, many employees succumbed to pneumonia, typhoid fever and varied intestinal illnesses. Canal authorities made no provisions for the 1000’s of employees who have been maimed.

The Culebra Minimize was the intimidating problem. The French effort had excavated 78 million cu yd of earth and rock, however solely 30 million cu yd of that lay inside the remaining canal route. Stevens’ plan of assault was akin to floor mining: lay units of parallel tracks at varied ranges alongside the sloping sides of the lower. Rail-mounted steam shovels on the uphill observe chewed into the slope and deposited spoil onto flat automobiles ready on the downhill observe. Trains of empty automobiles ran like a big conveyor belt.

Though long-planned as a sea-level channel much like the Suez Canal, some engineers who studied the route argued that landslides and the Chagres River’s violent floods posed risks, and ships shifting at greater speeds in excavated channels have been extra prone to run aground than in a lock-and-dam system. After a lot examine and dispute, the lock-and-dam view gained out, accepted by the Senate in shut vote in 1907.

In two years Stevens had stabilized and reorganized the venture, making exceptional enhancements in housing, well being and provide, mobilizing each males and equipment. He resigned abruptly in 1907 with out giving a cause. Roosevelt rapidly appointed George Goethals, a U.S. Military Corps of Engineers standout, as chief engineer, giving him near-dictatorial authority to remove bureaucratic complications. He was cool-tempered and rigorous. Early in his tenure steam shovel engineers threatened to strike and walked off the job. Goethals fired them and employed new crews. He handled employees humanely, dedicating Sunday mornings to listening to employees’ grievances on a primary come, first served foundation.

Determine from ENR archive.

By 1909 there have been 68 steam shovels at work within the lower, 500 trainloads of spoil a day have been carried away, and the workforce had reached 44,000. 300 drillers have been at work with dynamite crews putting 800,000 sticks of dynamite within the holes every month. The 76 miles of terraced tracks inside the lower needed to be relocated repeatedly as excavation progressed. Drilling, blasting, shoveling, filth hauling and observe shifting all needed to be coordinated. A lot of the spoil was used to construct embankments or the three.3-mile-long Naos Island breakwater defending the Pacific Ocean canal entrance.

The lock and dam design meant the Gatun Dam needed to be sited additional downstream and develop in measurement: 115 ft excessive and seven,700 ft lengthy. It will create the most important synthetic lake on this planet, Lake Gatun, flooding 166 sq miles and displacing 40,000 Panamanians. Lack of bedrock on the dam web site raised considerations, nevertheless it was finally deemed protected. The dam has a core of impermeable blue clay, and its quantity of twenty-two million cu yd made it the most important earthen dam on this planet.

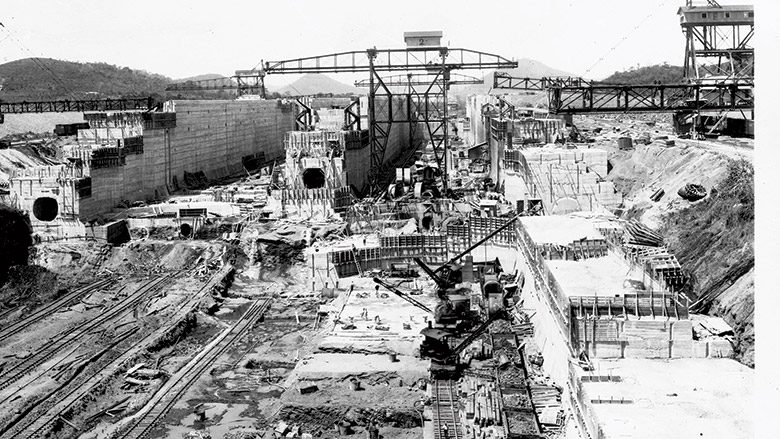

The six pairs of locks have been and are imposing monoliths: 110 ft broad, 1,000 ft lengthy, with the tallest chambers 81 ft. They have been constructed by pouring concrete from overhead cableways into enormous kinds. Inside the aspect partitions, 18-ft-dia tunnels carried the water used to fill the locks. The metal lock gates have been the most important ever erected: 65 ft broad, 47 to 80 ft tall, and seven ft thick. Fifty mills, foundries and specialty fabricators in Pittsburgh provided many of the lock parts.

Landslides have been an everyday menace. The Cucaracha slide in 1907 noticed 50 acres of slope slip downwards over 10 days. The five hundred,000 cu yd of mud dumped into the canal buried rail tracks and two steam shovels.

The Panama Canal opened in 1914, rewiring international commerce. A decade of U.S. efforts had excavated 232 million cu yd of fabric. But it surely got here at an incredible value, with 5,609 employees lifeless from illness and accidents.
