Bridge Conference Highlights Digital Delivery, Connecting Communities

U.S. public works companies such because the Pennsylvania Dept. of Transportation and the Pennsylvania Turnpike Commission are eyeing eventual full adoption of digital supply for tasks. Whereas the open commonplace of business basis lessons (IFC) is making its method into the civil infrastructure house, companies are grappling with challenges together with interoperability, proprietary platforms and data change.

PennDOT launched a initiative together with many pilot tasks and has achieved the aim of permitting building tasks to be bid utilizing 3D know-how versus a conventional building plan format by this 12 months. “It’s gaining natural momentum as we roll it out,” mentioned Allen Melley, PennDOT chief of digital supply, on the International Bridge Conference in Pittsburgh, held July 14-16. Pennsylvania was the featured state at IBC this 12 months.

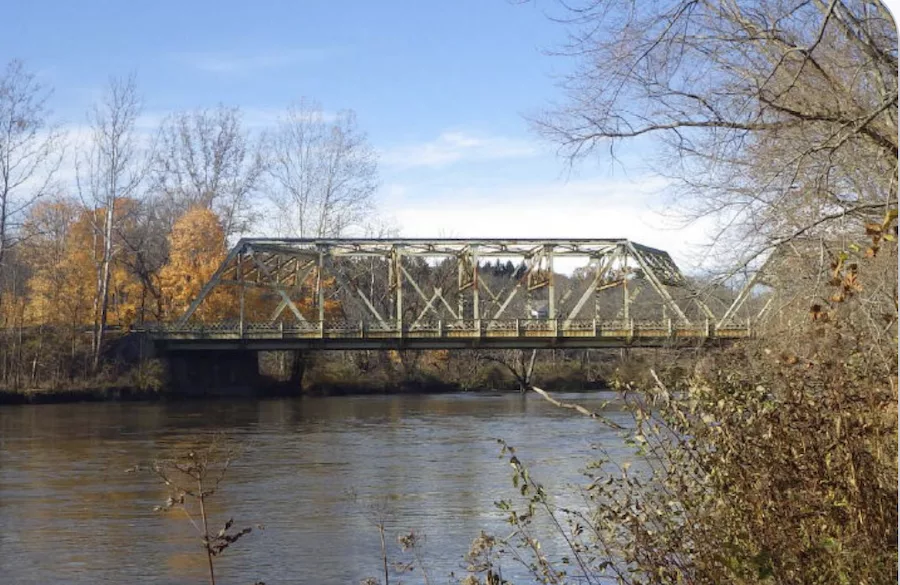

Interoperability between native knowledge and IFC stays a problem. In a single instance, the modeling of a bridge was initially “visually off,” famous Joe Brenner, BIM lead with Michael Baker Worldwide, one of many consultants working with PennDOT. Nevertheless, he famous {that a} bridge venture on State Route 6 was just lately deployed as the primary totally model-based contract.

The turnpike authority this spring accomplished a pilot venture that utilized modeling for bidding by means of building of a two-span prestressed field beam bridge, mentioned Dan Rogers, chief bridge engineer with advisor RETTEW.  Classes discovered included clearly defining the scope of labor early on, including a 3D process to the contractual language and assembly always to deal with studying curves, he added.

Offering the contractor with 2D plans to complement the mannequin helped improve the consolation degree, he famous. “They stored asking, the place’s the geotextile, the waterproofing?” he mentioned. “They thought the mannequin could be fully detailed.” High quality management inspectors additionally confronted a studying curve with 3D modeling, he famous.

Ryan Rago, the turnpike’s venture supervisor, added that there have been points with sure proprietary software program packages through the bidding processes for the pilot tasks.

Future tasks will mix modeling for freeway and bridge elements, and it’ll finally inform operations and upkeep, and asset administration, he added.

The Metropolis of Pittsburgh is overhauling the way it manages property within the wake of the Fern Hollow Bridge collapse in 2022, mentioned Zack Workman, town’s chief deputy bridge engineer. “We started revisiting all the things we knew,” he mentioned. Town commissioned a brand new asset administration program with WSP as advisor.

A bridge stock overhaul discovered points with outdated data, poor entry to plans and even circumstances the place it wasn’t clear who owned what asset, he famous. Town created a brand new bridge upkeep division. Workman famous that the Fern Hole Bridge had 6 in. of paving overlay, not three, including to the general lifeless weight of the 446-ft-long inflexible metal Ok-frame construction.

Because of the elevated deal with inspections, town discovered that drainage scuppers on the brand new bridge had been already being compromised by foliage development, which is now commonly cleaned out, he added.

Bridging Communities

The Interstate 35 project in Austin, Texas, requires eight cap-and-stitch new bridges alongside 4 miles of the freeway when it’s relocated beneath grade, mentioned Kasian Warenycia, senior bridge engineer with Arup. These caps will create 30 new acres of public house together with parks, concessions, and a possible transit station.

The design crew needed to consider the weights of elements that can sit on or use these bridges, reminiscent of timber, buildings, emergency autos, and utilities, he famous. Furthermore, through the projected 100-year design life, these elements will change. Designers envision a utility hall that branches out to facilities as wanted and gained’t require opening up the bridges when these facilities change.

Warenycia mentioned two-story retail buildings with occupied roofs and 50-ft shade timber could be among the many commonplace elements to take a seat atop the bridges. Light-weight supplies reminiscent of geofoam will probably be thought-about for the crossings, which is able to make the most of prestressed concrete girders. The bridges will create “tunnel-like circumstances” for the depressed freeway, so points reminiscent of air flow, clearances and evacuation have to be thought-about.

Maybe a very powerful consideration is group participation, he mentioned. Alongside the 4 miles, “we take into account every particular neighborhood’s wants.”
